 What is anaerobic digester tank ? Anaerobic digester is a biological process to degrade and convert the organic waste to biogas , which is widely used as a source in renewable energy . Almost all of the organic waste can use anaerobic digester , like the domestic waste , industry waste , animal waste ect . These wastes can be highly untilize , conver the waste to the green renewable energy . There are some conditions to achieve the reaction . The reaction environment need to be in the condition of absence of oxygen , and there is also some conditions of the temperature . For the mesophiles are most efficient at moderate temperature ranges between 25°C - 40°C , while thermophiles run most efficiently at higher ranges between 45°C - 80°C . In some sites if the temperature is low , it need to do some insulation in order to keep the temperature in a certain level . If the heat is lose the organic material can’t in full reaction , that means waste money . Why will you select our glass fuse

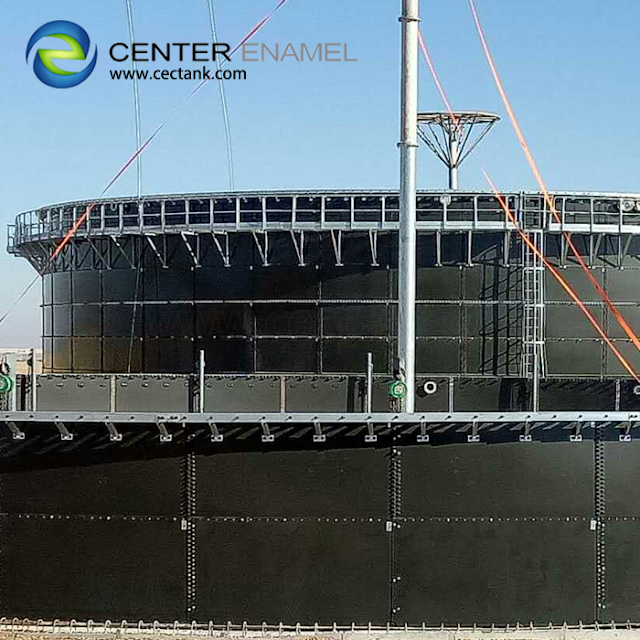

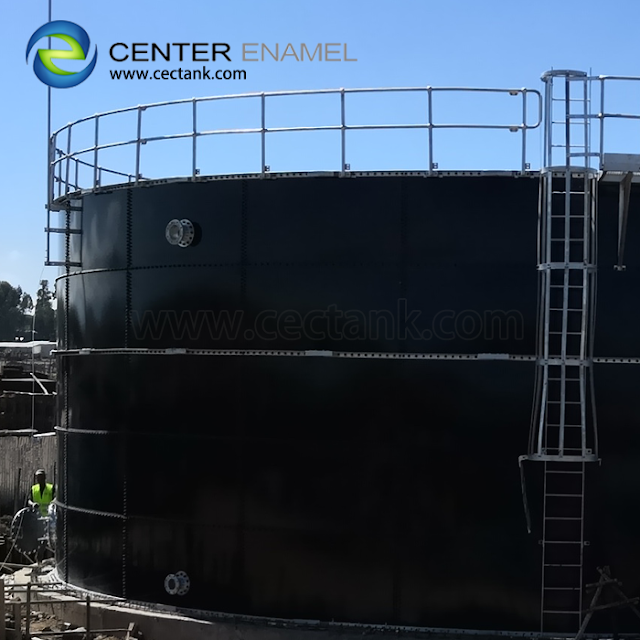

 Center Enamel’s history of anaerobic digestion (AD) tanks exceeds 27 years, and now the glass fused to steel anaerobic digestion (AD) tanks have been exported to USA, Australia, Germany, Russia, South America, Asia etc and the Company’s experience has expanded considerably over the decades. Our anaerobic digester tank is also called glass fused to steel tank which is coated with 2 layer enamel, and consist of Enamel sheet, special sealant and Self-locking bolts. To assemble the industrial tanks, we use the self-locking bolt and special sealant to connect the steel sheets. This kind of assembly structure achieved rapid low installation requirements. And according to actual requirements, it can be easily expanded, removed, dismantled. The Advantages and Benefit of the Glass fused to steel anaerobic digester tanks： 1. Gas impermeable: It is suitable for the gas storage. Moreover, Gas membrane roof will be offer this biogas digester plant to make sure no gas leaking. 2. Wide range of capa

 Our Anaerobic Digester Tanksare made from glass fused to steel which is the premium technology in the tank market. The glass fused to steel sheet shows good chemical and physical performance because it contains titanium. Furthermore, the superfine glass foam-like structure of the enameling layer forms an inert protection for both the interior and exterior tank surfaces to guard against villainous weather and corrosion and abrasion. Detail Specification of our Anaerobic Digester Tanks: Category Specification Coating Color dark green , white, blue , color can be customized upon your request Coating Thickness 0.25 ～ 0.40mm , double coating Acid and alkalinity proof Standard sheet PH : 3 ～ 11 Special sheet PH : 1 ～ 14 Adhesion 3450 N / cm Elastic Same as steel sheet ,around 500 Kn / mm Hardness 6.0 ( Mohs ) Service life ≥ 30Years Holiday test > 1500v Permeability Gas / liquid impermeable Easy to clean Smooth , glossy , inert , non adhesive Corrosion resistance E

 Glass Lined to Steel Bolted Tanks differ from other tanks as the tank panels are lined inside and out with a glass enamel that binds to the metal providing many advantages over standard epoxy coated or welded painted storage tanks. The glass lining forms a hard, chemically inert layer that permanently protects the steel surface from rust, corrosion, undercutting, abrasion and stains. Enamel Tank Specification: Coating Color: White, Blue or as per request Number of Coats: 2 coating (double sides) Number of Fires: 2 burning (double sides) Coating Thickness: 0.25 - 0.40mm Steel Size: 2500 x 1250mm Steel thickness: 3 - 12mm Adhesion: 3,450 M/cm Elastic: 500 KN/mm Hardness: 6.0 Mohs Service Life: 30 Years Holiday Test 1500 V Center Enamel Co., Ltd has advanced R&D team which strictly sticks to high-standard testing system. Here are some main testing procedures. Glass-Fused-to-Steel Tanks   Stainless Steel Bolted Tanks   Glass Lined Steel Tanks   Bolted Steel Tanks

 Recent Projects: 1. 2016 Australia Melbourne Potable Water Storage Plant Project description: Site:Melbourne, Australia Dimension:22.17*6M with aluminum roof Qty:2sets Finished time: April 2016 2. 2016 Ecuador Manta Potable Water Treatment Plant Project description: Dimension:18.34*4.8M Qty:6 sets Roof: 4 sets with open top and 2 sets with aluminum roof Finished time: Feb. 2016 3. 2016 Colombia Waste Water Treatment Plant Project description: Dimension: Ø 6.11*6.11 7.2M with Glass-reinforced Polyester Roof Qty:1 set Finished time: May, 2016 4. 2016 New Zealand Dairy Effluent Storage Project Project description: Dimension:Ø 11.46*3.6M with glass fused steel floor Finished time: June, 2016 5. 2016 Russia Municipal Wastewater Treatment Plant Project description: Dimension:2 sets Ø 5.35*8.4M with glass fused steel foof 1 set Ø2.32*8.4 with glass fused steel roof Qty: 3 sets Finished time: May, 2016 Glass-Fused-to-Steel Tanks   Stainless Steel Bolted Tanks   Glass Lined Steel Tanks   Bolte

 With nearly 30 years experience in enameling industry, Center Enamel Co.,Ltd has become the largest and most professional enamel tank manufacturer in China. We already established a professional R&D team and advanced laboratory. With this strong enameling R&D ability, we can meet various demands of customers. Production steps of glass fused to steel plate: Step 1. Plate Cutting—steel plate CNC cutting Step 2. Enamel Spraying---double sides coating Step 3. High Temperature Burning— automatic system for double burning Step 4. Quality Test—holiday test,impact test, acid &alkali test, corrosion test, adherence test Main accessories for glass fused to steel tank: Ladder vertical ladder, tilt ladder, helical ladder Roof guardrail partial guardrail, perimeter guardrail Ladder platform with guardrail, kickboard Manhole /Manwa /Nozzle HDG / SS / Epoxy Coating Glass-Fused-to-Steel Tanks   Stainless Steel Bolted Tanks   Glass Lined Steel Tanks   Bolted Steel Tanks   Biogas St

 Roofs / Covers for Glass Fused to Steel Tanks 1. Externally Supported Roof (Glass Fused to Steel Roof): BioEnergy Storage Solutions include the best cover options for digester applications. The gas zone of a digester is the most corrosive area and requires appropriate design. Along with this corrosiveness, there are many other factors (environmental, mixer loads, vacuums, pressure, ancillary equipment loads, etc.) that need to be considered in cover selection. Center Enamel can design and engineer the right solution from the multiple roofs types according to client’s request. The most common roof design is with a smooth internal roof surface and without rafters. Used when moderate to high pressure or vacuum design limits are anticipated. It is also preferred when there are heavy load conditions expected from mixers and/or other ancillary equipment is installed in the cover. Application: potable water storage cover, bulk storage cover, anaerobic digester cover, anaerobic fermentation t
